Descriptions：

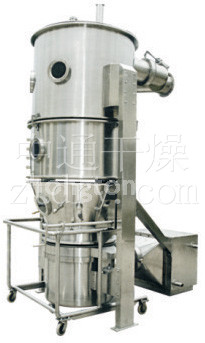

● LBF Turbojet fluid-bed granulator coater has vane-shape bottom of hopper which has a certain lean, let the air flow pass through the rift then form circle-shape strong air flow, it makes material rotate as regular turbojet movement.
● Meanwhile the Pneumatic nozzle installed under left wall spray binder or coating liquid into turbojet material, in this way granule or coating film can be obtained.
● It is widely used in coating of powder, granules, pellet, entercreleasing, slow and control releasing, and coating of taste masking, moisturproof antioxidation, prevent water, heat insulation,coloration and separation etc.
Features：
● Fluidization of rotational flow，it overcomes channel flow and died corner.
● The prepared granule is porous and can solve quickly and also has certain intensity and is not easy to break.
● For materials such as chinese traditional medicine and moisture adsorbed materiality are easy to operate.
| ItemModel | |||||||||||||
| Name | Unit | 0.5 | 5 | 10 | 15 | 30 | 60 | 90 | 120 | 200 | 300 | 500 | 800-1000 |
| Feeding capacity | kg/批kg/batch | 0.5 | 5 | 10 | 15 | 30 | 60 | 90 | 120 | 200 | 300 | 500 | Designed according to user’s demands. |
| Power of fan | KW | 2.2 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | 22 | 30 | 55 | |
| Compressed air | m3/min | 0.45 | 0.6 | 0.6 | 0.6 | 0.6 | 0.9 | 1.1 | 1.3 | 1.8 | 2.4 | 3 | |
| Steam consumption | kg/h | 36 | 41 | 53 | 71 | 95 | 143 | 167 | 183 | 343 | 381 | 450 | |

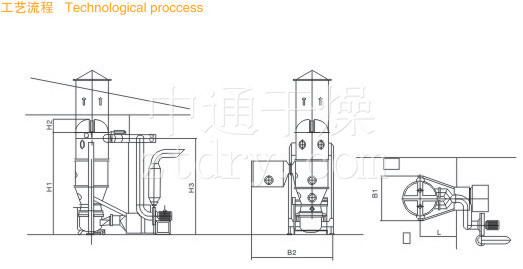

| Overall dimension | H1(mm) | 2600 | 2600 | 2300 | 2450 | 2450 | 3050 | 3050 | 3050 | 3500 | 3700 | 4050 | |
| H2(mm) | 250 | 320 | 340 | 490 | 540 | 590 | 690 | 790 | 890 | ||||
| H3(mm) | 2100 | 2250 | 2250 | 2850 | 2850 | 2850 | 3300 | 3500 | 3850 | ||||
| φ1(mm) | 300 | 550 | 550 | 650 | 700 | 1000 | 1100 | 1200 | 1400 | 1600 | 1800 | ||
| φ2(mm) | 150 | 180 | 180 | 250 | 250 | 280 | 280 | 280 | 280 | 315 | 355 | ||
| B1(mm) | 1550 | 1650 | 1010 | 1110 | 1160 | 1460 | 1560 | 1660 | 1860 | 2060 | 2260 | ||
| B2(mm) | 1460 | 1760 | 1860 | 2460 | 2660 | 2860 | 3260 | 3660 | 4060 | ||||
| L(mm) | 800 | 850 | 1100 | 1100 | 1250 | 1530 | 1530 | 1650 | 1650 | 1750 | 1850 | ||
| Remarks:Some of the parameters are for reference only.According to the condition of material,our factory has the right to change without notice. | |||||||||||||
