Descriptions：
Powder or seed granule in rotated fluid will undertaken the action of air floading force in ring gap, rotating centrifugal force and gravity itself and appear cycle rope strain shape. Adhesive or coat liquid will be sprayed Into the layer of material to form pellet with high degree of ball or continuous and uniform coating film.
Features：
● Integrating mixing, pelleting, granulating and drying in its one body, reducing the process of technics and contamination and the workload of workers.
● The surface of the equipment is neat and lubricity inside and outside, free of blind corner and easy to clean.
| Item/Model | 1.5 | 10 | 20 | 30 | 60 | 120 | |
| Working Volume | L | 5 | 30 | 60 | 105 | 180 | 420 |
| Feeding capacity | kg/批kg/batch | 0.5-1.5 | 3-10 | 8-20 | 10-30 | 20-60 | 40-120 |
| Rotary power | KW | 0.55 | 1.5 | 4 | 5.5 | 7.5 | 11 |
| Power of fan | KW | 4 | 5.5 | 7.5 | 15 | 18.5 | 22 |
| Consumption of steam | kg/h | 35 | 42 | 84 | 166 | 250 | 332 |
| Consumption of compressed air | m3/min | 0.3 | 0.6 | 0.6 | 1.1 | 1.8 | 2.4 |

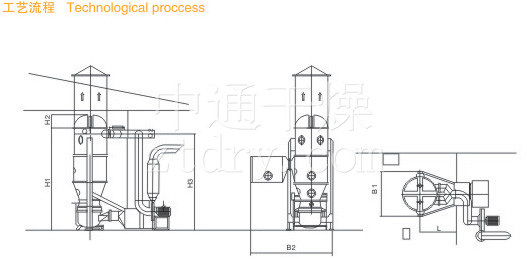

| H1(mm) | 2600 | 2250 | 2850 | 2850 | 3300 | 3500 | |
| H2(mm) | 320 | 490 | 590 | 690 | 790 | ||
| H3(mm) | 2050 | 2600 | 2600 | 3080 | 3280 | ||
| φ1(mm) | 400 | 700 | 1000 | 1200 | 1400 | 1600 | |
| φ2(mm) | 180 | 180 | 280 | 280 | 280 | 315 | |
| B1(mm) | 1650 | 1160 | 1460 | 1660 | 1860 | 2060 | |
| B2(mm) | 1800 | 2460 | 2860 | 3260 | 3660 | ||
| L(mm) | 1000 | 1250 | 1530 | 1650 | 1650 | 1750 | |
| Remarks:Some of the parameters are for reference only.According to the condition of material,our factory has the right to change without notice. | |||||||
