Descriptions：

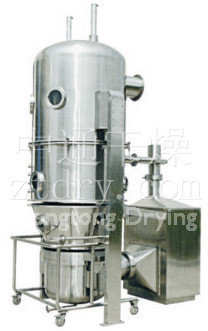

PGL-B machine is suitable for Chinese traditional medicine granule, such as calpsule and no or low sugar and tablet or coating of granule.
Features：
● Multi-fluid atomizer, Particularly it is suitable for material that contains component of amylase and has strong viscosity or theral sensitive product.
● The structure of spraying drying chamber, filtering chamber, fluid-bed and secondary air supply system has been improved greatly. It can appear the features of spraying drying in deed.
● Designed and manufactured laid out by GMP.
● Can realize continuous spraying precess of immersed paste.
● Simple and reliable operation.
● Improve spraying and drying efficiency.
● Compared with FL, the fluid-bed is more constant and the adjusted air amount is more reasonable. The drying degree is improved and the “died bed” is overcome.
|
Item
|
Model
|
3
|
5
|
10
|
20
|
30
|
40
|
80
|
120
|
150
|
|
Volume of raw material
|
L
|
26
|
50
|
100
|
220
|
300
|
420
|
670
|
1000
|
1500
|
|
Feeding liquid
|
kg/h
|
2-4
|
4-6
|
6-15
|
15-25
|
20-40
|
30-60
|
60-100
|
20-160
|
100-200
|
|
Specific gravity of liquid
|
kg/L
|
≤1.3
|
||||||||
|
Steam consumption（0.6Mpa）
|
kg/h
|
25
|
50
|
120
|
160
|
240
|
280
|
300
|
380
|
465
|
|
Auxiliary fan
|
m3/min
|
0.4
|
0.6
|
0.9
|
0.9
|
1.1
|
1.1
|
1.3
|
1.6
|
1.8
|
|
Main fan
|
Kw
|
0.55
|
0.75
|
0.75
|
1.1
|
1.5
|
1.5
|
1.5
|
2.2
|
|
|
Main machine
|
Kw
|
3
|
4
|
7.5
|
11
|
18.5
|
18.5
|
22
|
30
|
37
|
|

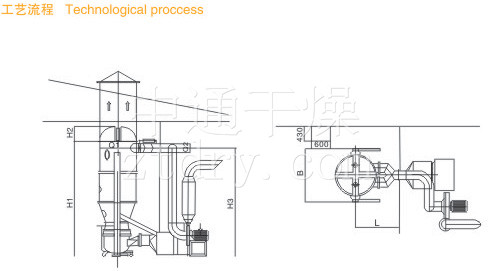

H1(mm)
|
1900
|
2360
|
2680
|
3150
|
3630
|
3630
|
4120
|
5050
|
5400
|
|
|
H2(mm)
|
190
|
260
|
340
|
490
|
540
|
590
|
690
|
990
|
||
|
H3(mm)
|
1680
|
2140
|
2460
|
2930
|
3410
|
3410
|
3900
|
4830
|
5180
|
|
|
φ1(mm)
|
400
|
550
|
700
|
1000
|
1100
|
1200
|
1400
|
1800
|
2000
|
|
|
φ2(mm)
|
150
|
180
|
180
|
250
|
280
|
280
|
315
|
355
|
||
|
B(mm)
|
860
|
1010
|
1160
|
1460
|
1560
|
1660
|
1860
|
2260
|
2460
|
|
|
L(mm)
|
1050
|
1050
|
1250
|
1400
|
1450
|
1500
|
1600
|
1800
|
2000
|
|
| Remarks:Some of the parameters are for reference only.According to the condition of material,our factory has the right to change without notice. | ||||||||||
