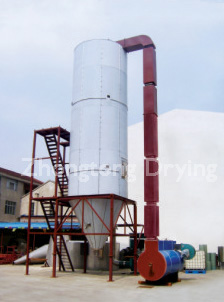

YPG Series Pressure Spray(Cooling/Consendate) Dryer


The liquid or paste raw material is spraied into minuty liquid drop by pressed spraier draw assistance from pressure of isoulate pump, and quickly drying through amplly heat exchange.(10~90sec.) at last, the powder or small granule is finished.


 Fast drying speed, especially suitable for heat sensitive materials

The products are spherical particles with uniform particle size, good fluidity and solubility, high purity and good quality.

 Wide range of applications, such as hot air drying, granulation, cooling granulation, spray crystallization, spray reaction, etc.

It can be equipped with fine powder returning and then wet agglomeration system to meet the user's requirements on material particle size.

The operation is simple and stable, the control is convenient, and it is easy to realize automatic operation. The product particle, bulk density and moisture can be adjusted within a certain range.

It is suitable for liquid of foodstuff,pharmaceutical,chemical industry,dyestuff,ceramics,agrochemicals,plastic and so on.

Model 50 100 150 200 300 500 1000
Evaporated amount Kg/h 50 100 150 200 300 500 1000
Overall dimension (Φ×H)mm 1600×8900 2000×11500 2400×13500 2800×14800 3200×15400 3800×18800 4600×22500
High pressure pump Mpa 2-10
Power KW 8.5 14 22 24 30 82 30
Air inlet temperature ℃ 300-350
Moisture content of product % ﹤5 can reach 0.5
Product recovery% ﹥97
Electricity heating KW 75 120 150 When the temperature below200℃,calculate on the practical conditions.
Electricity + steam Mpa+KW 0.5+54 0.6+90 0.6+108
Hot air furnace Kcal/h 100000 150000 200000 300000 400000 500000 1200000
