Details
Descriptions：
The pressure spray drying granulator uses a pressure atomizer to atomize a solution or a slurry material into fine droplets by means of the pressure of a diaphragm pump, so that the surface area is significantly increased, and is quickly dried by thorough heat exchange with hot air ( A few seconds to tens of seconds) to obtain a device for powder or small particle products.
Principle：

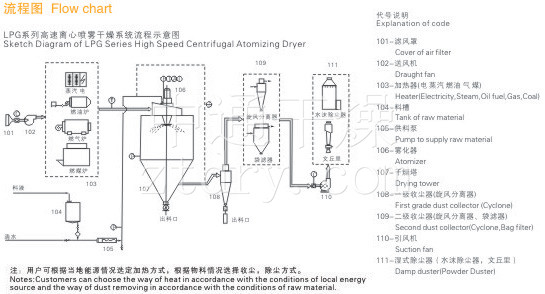

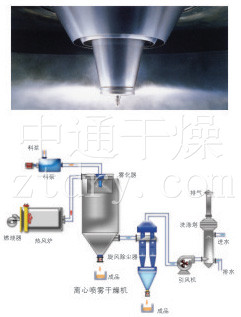

The air is filtered and heated into the air distributor at the top of the dryer, and the hot air enters the drying chamber in a spiral shape evenly. The liquid is sprayed into a very fine misty liquid droplets through a high-speed
Features：
●The drying speed is fast. After the atomization of the liquid, the surface area is greatly increased. In the hot air flow, 95%-98% of the water is evaporated instantaneously. The drying time is only a few seconds, which is especially suitable for the heat-sensitive material drying.
●The finished product has good uniformity, fluidity and solubility, high purity and good quality.
●The production process is simplified and the operation control is convenient. For liquids with a moisture content of 40-60% (up to 90% of special materials), the liquid can be dried into a powder product at one time. After drying, no pulverization and screening are required, the production process is reduced, and the purity of the finished product is improved. The particle size, bulk density and moisture of the product can be adjusted within a certain range by changing the operating conditions, and the control and management are very convenient.
| Paramters | Type：LPG | |||||
| 5 | 25 | 50 | 100 | 150 | 200-2000 | |
| Inlet temperature ℃ | 140~350 Automatically controlled | |||||
|
Outlet temperature ℃ |
~80-90 | |||||
| Water evaporation capacity kg/h | 5 | 25 | 50 | 100 | 150 | 200-2000 |
| Drying form of centrifugal nozzle | Compressed air | Mechanism drive | ||||
| Revolution of atomizer （r.p.m） | 25000 | 18000 | 18000 | 18000 | 15000 | 8000-15000 |
| Diameter of atomizing disc（mm） | 50 | 100 | 120 | 140 | 150 | 180-340 |
| Heating source | Electricity | Electricity+Steam | Electricity+Steam、Oil fuel、gas | Depends on the user | ||
| Max. power of electric heater KW | 9 | 36 | 63 | 81 | 99 | |
| Overall dimension （m） | 1.8×0.93×2.2 | 3×2.7×4.26 | 3.7×3.2×5.1 | 4.6×4.2×6 | 5.5×4.5×7 | Depends on practical conditions |
| Dried powder recovery rate % | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 |
