FLP Series Fluid-bed granulator/pelletor/coater

Details

Descriptions
FLP Granulator/Coater/Pelleter is multi-function equipment integrated spray drying-granulating-centrifugal spray coating-fluid coating-drying in one body. The machine combines various process operations. Particularly it is suitable for granulating, pelleting and coating of various varieties in pharmaceutiCal industry, foodstuff industtry and chemical industry.etc.

Features
● Multi-function such as granulating,pelleting,coating in one machine.
● Powder material granulating.
● Powder material coating.
● Powder material pelleting.
● Chinese medicine spray drying,granulating and coating.
● Make 1 0-30 meshes big granule.
● Film coating of Powder,granules and pellets,entericrelease.slow and controI reIease coating.
● Taste masking,odor,moisture-proof,anti-oxidation,prevent water,heat insulation,coloration and separation coating.
● Powder, granule, agglomerate material drying.





Item Model(LBF)
Name Unit 10 15 20 30 45 60 90 120
Diameter of container mm 700 800 900 1000 1100 1200 1400 1500
Production capacity kg/batch 2.5-10 3-15 5-20 7.5-30 10-45 15-60 20-90 30-120
Power of fan kw 5.5 7.5 7.5 7.5 11 11 15 18.5
Steam
Compressed air
Pressure Mpa 0.4-0.6
Consumption kg/h 35 42 47 60 140 160 180 240
Pressure Mpa 0.6
Consumption m3/min 0.6 0.6 0.6 0.9 0.9 1.1 1.3 1.5
Noise dB Treatment of air volume not exceed 75DB

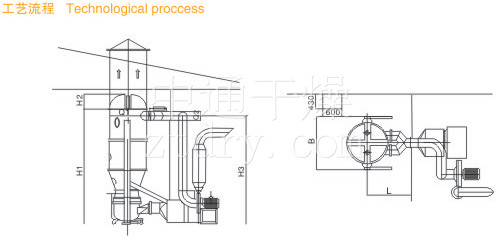

Overall dimension of main machine H1(mm) 2790 3350 3650 3720 3720 3850 3950 4190
H2(mm) 340 490 540 590 640 690 740 790
H3(mm) 2570 3130 3430 3500 3500 3630 3720 3975
φ1(mm) 700 1000 1000 1200 1300 1400 1500 1600
φ2(mm) 250 250 250 280 280 280 280 315
L(mm) 1250 1400 1450 1500 1550 1600 1650 1700
B1(mm) 1160 1460 1560 1600 1760 1860 1960 2000
B2(mm) 1860 2460 2660 2860 3060 3260 3460 3660
Remarks:Some of the parameters are for reference only.According to the condition of material,our factory has the right to change without notice.
