QPG Series Air Stream Spray Dryer

Details

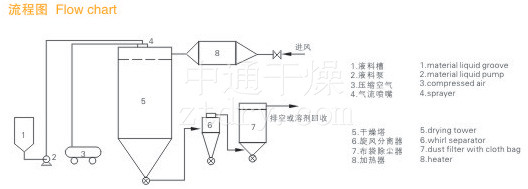

Principle:

The cleaned air is heated and enters the drying tower. The material in the tower is atomized and turned into microdroplets through two or three liquid nozzles. The raw material is rapidly exchanged with hot air to evaporate the moisture (solvent) in the raw material. Moisture or solvent is discharged together with hot air, and then a powder product is obtained.

Features:
● For raw materials with high viscosity and thick grease, the effect is better. Other devices cannot replace it.
●More varieties, suitable for low temperature drying.
●The nozzle structure is simple, the maintenance is convenient, and the running cost is low.



Technical parameters:

Parameters Model
5
25
50
100
150
200
Amount of
Evaporation
Kg/h
△t=150℃~90℃
1.5
7.5
15
30
45
60
△t=200℃~100℃
2.5
12.5
25
50
75
100
△t=250℃~100℃
3.75
18.75
37.5
75
112.5
150
△t=300℃~100℃
5
25
50
100
150
200
△t=350℃~110℃
6
30
60
120
200
240
compressed air m3/nin
0.9
0.9
1.1
1.5
2.7
3.4
presure of air Mpa
0.4
0.6
0.7
heat resource
电、电+蒸汽、燃煤(油)热风炉
consumption of heating 104 KCal/h
1
5
10
20
30
40
power kw
0.75
4
7.5
11
15
18.5
注:部分参数设计时视不同物料有所调整,以设计为准。
