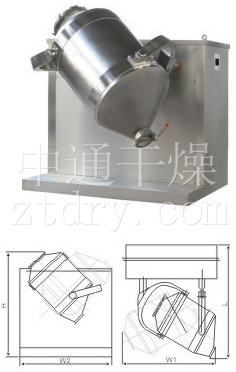

HDJ Series Multi-direction Motion Mixer

Details

Applications
This machine is suitable for many industries such as pharmaceutical industry, chemical industry, metallurgy industry, foodstuff industry, architecture industry and institutes, It can mix powder and granule raw materials having good fluidity and make the mixed raw materials reach the best mixing state.

Features
Because the mixing drum has multi directional motion, it makes raw material inside the drum has many cross-mixing points, therefore the mixing effect is good. Its degree of uniformity may be over 99.9%. Its Max loading efficiency may be 0.9 (The loading efficiency of ordinary mixer is 0.4~0.6). Its mixing time is short and its efficiency is high.
The design of mixing drum is unique. Its inner wall is polished finely. Its advantages are no dead corner, no pollution to raw material, convenient in discharge, easy in clean and so on.

Principle
During the period of operation, because the mixing drum has multi-directional actions of motion, it speeds up the fluid and diffused effect of raw material. Meanwhile it avoids the phenomenon of segregation and accumulation caused by centrifugal effect in ordinary mixer and no dead corner. It can guarantee the best quality of mixed raw material.
Structure: this machine consists of stand, transmission system, electric control system, multi-directional motion mechanism, mixing drum and so on. The mixing drum contacted with raw material is made of stainless steel. The inner and outer wall of drum is polished.

Technical parameters:

Model HDJ-5 HDJ-100 HDJ-200 HDJ-400 HDJ-600 HDJ-800 HDJ-1000 HDJ-1500
Material (L) 5 100 200 400 600 800 1000 1500
Max loading
volume (L)
4 80 150 300 450 600 750 1200
Max loading
weight (kg)
5 80 150 200 300 400 500 750
Speed of shaft(rpm) 24 15 12 10 10 10 10 10
Motor power(kw) 0.37 1.5 3 4 5.5 7.2 11 11
Overall dimension(mm) L 600 1200 1300 1500 1800 1900 1950 2600
W 1000 1800 1600 2200 2500 2400 2500 2500
H 1000 1500 1500 1500 1650 2100 2400 2350
Weight(kg) 150 500 750 1200 1500 1650 1800 2500
