Details
|
|

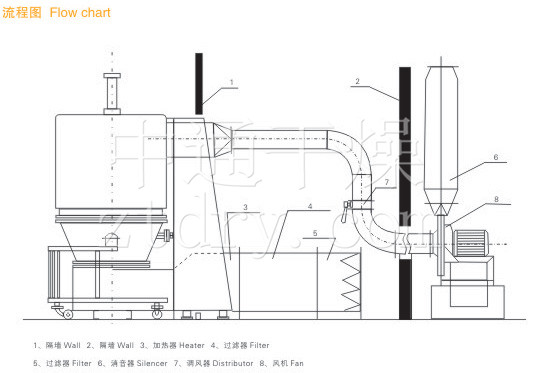

After the air is purified by heating, it is introduced from the lower part by the induced draft fan and passes through the screen plate of the hopper. In the working chamber, fluidization is formed by stirring and negative pressure, and the water is quickly evaporated and then taken away with the exhaust gas, and the material is quickly dried.
Applications:
>Suitable for drying humidity block or powder raw material in the fields such as pharmaceutical , foodstuff, feedstuff, chemical industries and so on;
>Mechanical screw extrusion granules, rocking granules, wet high speed mixed granulation granules.
> Wet granules and powdery materials in the fields of medicine, food, feed, and chemical industry are dry.
> Large particles, small agglomerates, viscous block granular materials.
> Konjac, polyacrylamide and other materials that change in volume when dry.
Features:
> The fluidized bed has a circular structure to avoid dead ends.
>The hopper is set to agitate to avoid the agglomeration of wet materials and the formation of channeling during drying.
>It adopts tipping and unloading, which is convenient and rapid, and can also design automatic feeding and discharging system according to requirements.
> Sealed negative pressure operation, the gas is filtered. It is easy to operate and easy to clean. It is an ideal equipment that meets the requirements of GMP standards.
>The drying speed is fast and the temperature is uniform. The drying time of each batch is generally 20-30 minutes.
Item | Unit | Model | |||||||
Raw material feed | kg | 60 | 100 | 120 | 150 | 200 | 300 | 500 | |
Fan | Air volume | m3/h | 2361 | 3488 | 4000 | 4901 | 6032 | 7800 | 10800 |
Air pressure | mmH2O | 594 | 533 | 533 | 679 | 787 | 950 | 950 | |
Power | kw | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 45 | |
Stirring power | kw | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 | |
Stirring speed | rpm | 11 | |||||||
Consumption of steam | kg/h | 141 | 170 | 170 | 240 | 282 | 366 | 451 | |
Time of operation | min | 15-30(Depends on the material) | |||||||
Height of main machine | Square | mm | 2750 | 2850 | 2850 | 2900 | 3100 | 3300 | 3650 |
Round | mm | 2700 | 2900 | 2900 | 2900 | 3100 | 3600 | 3850 |
